Aprilia RSV4 Factory 2010 Specification

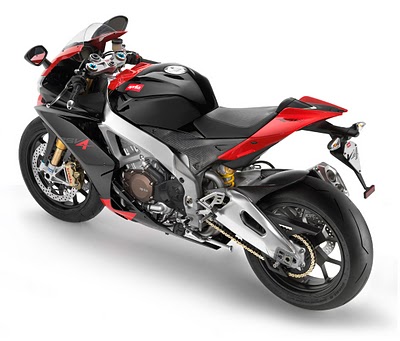

Aprilia RSV4 Factory 2010 pictures 3


Aprilia RSV4 Factory 2010 Specification
General informationAprilia RSV4 Factory 2010
Model:Aprilia RSV4 Factory
Year:2010
Category:Sport
Rating:71 out of 100.
Engine and transmission
Displacement:999.60 ccm (61.00 cubic inches)
Engine type:V4
Stroke:4
Power:177.55 HP (129.6 kW)) @ 12500 RPM
Torque:115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM
Compression:13.0:1
Bore x stroke:78.0 x 52.3 mm (3.1 x 2.1 inches)
Fuel system:Injection. Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the ri
Valves per cylinder:4
Fuel control:DOHC
Ignition:Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and â€Å“stick-coilâ€�-type coils
Starter:Electric
Lubrication system:Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Cooling system:Liquid
Gearbox:6-speed
Transmission type
final drive:
Chain
Clutch:MDouble disk oil-bath, with mechanical slipper system
Physical measures
Dry weight:179.0 kg (394.6 pounds)
Seat height:845 mm (33.3 inches) If adjustable, lowest setting.
Chassis and dimensions
Rake (fork angle):24.5°
Trail:105 mm (4.1 inches)
Front suspension:Öhlins Racing upside-down fork, 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mountings. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm
Rear suspension:Twin sided aluminium swingarm
Rear suspension travel:3,302 mm (130.0 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:190/55-17
Front brakes:Double disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Exhaust system:System 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3)
Speed and acceleration
Power/weight ratio:0.9919 HP/kg
Other specifications
Fuel capacity:17.00 litres (4.49 gallons)
Color options:Racing black
